Mixer Specifications

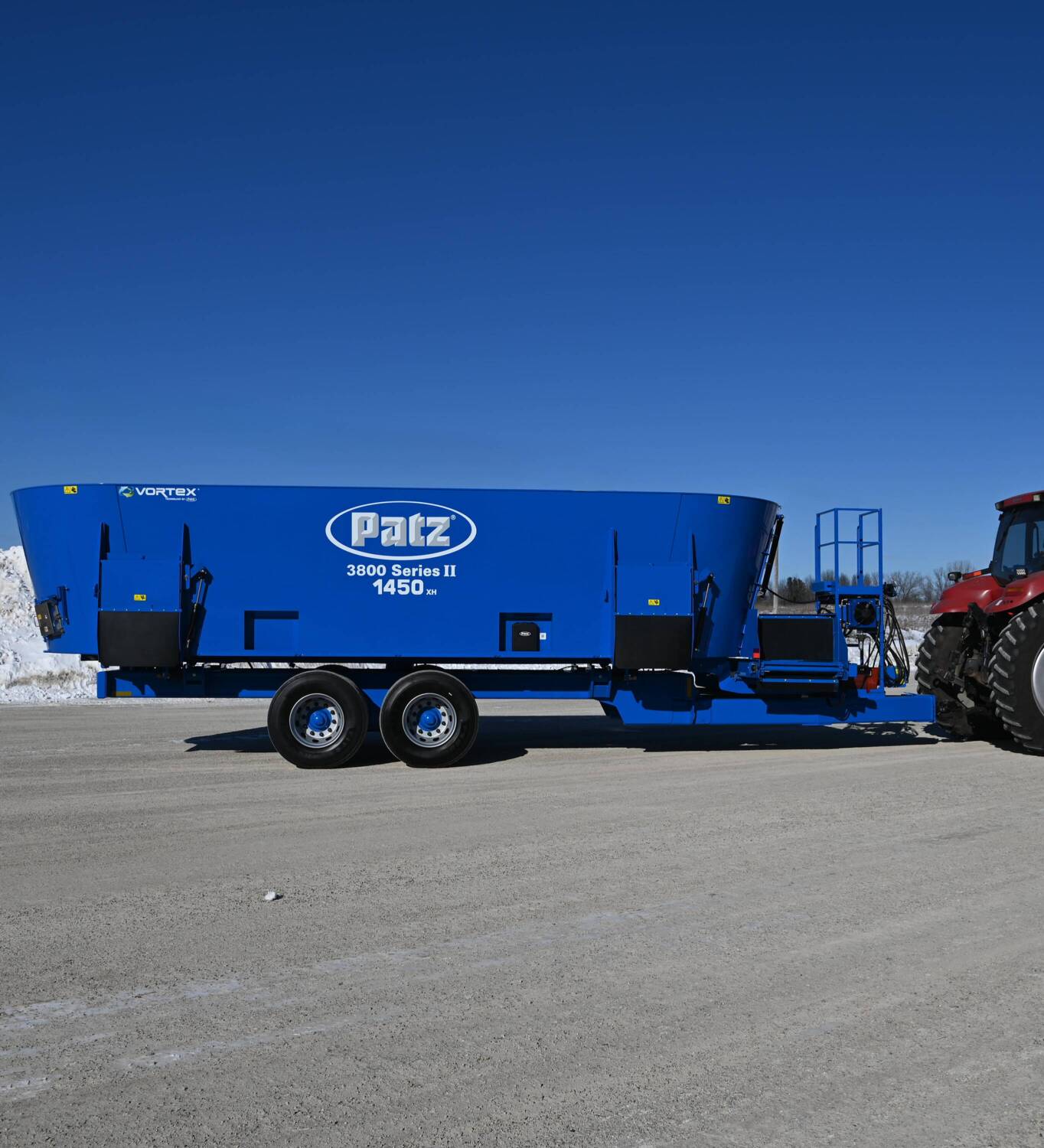

| 3800 Series II Trailer | 1450XH | 1675XH Size Kit | 1825XH Size Kit |
|---|---|---|---|
| Mixer Capacity | 1,450 ft³ (41.1 m³) | 1,675 ft³ (47.4 m³) | 1,825 ft³ (51.7 m³) |
| Capacity with Extensions (9-1/4″) | 1,675 ft³ (47.4 m³) | 1,675 ft³ (47.4 m³) | 1,825 ft³ (51.7 m³) |
| Max. Load Capacity | 36,250 lbs. (16,443 kg) | 41,875 lbs. (18,994 kg) | 45,625 lbs. (20,625 kg) |
| Height | 121.4 in. (3.1 m) | 129.8 in. (3.3 m) | 136.5 in. (3.5 m) |
| Width | 109 in. (2.8 m) | 109 in. (2.8 m) | 109 in. (2.8 m) |
| Length (2 speed / T3) | 458.1 in. (11.6 m) | 458.1 in. (11.6 m) | 458.1 in. (11.6 m) |
| Tractor Horsepower Required | 250 HP | 250 HP | 250 HP |
| Operating Speed | 700 – 1000 RPM | 700 – 1000 RPM | 700 – 1000 RPM |
1450XH
1,450 ft³
(41.1 m³)
1675XH Size Kit
1,675 ft³
(47.4 m³)
1825XH Size Kit
1,825 ft³
(51.7 m³)
1450XH
1,675 ft³
(47.4 m³)
1675XH
1,675 ft³
(47.4 m³)
1825XH
1,825 ft³
(51.7 m³)
1450XH
36,250 lbs.
(16,443 kg)
1675XH
41,875 lbs.
(18,994 kg)
1825XH
45,625 lbs.
(20,625 kg)
1450XH
121.4 in.
(3.1 m)
1675XH
129.8 in.
(3.3 m)
1825XH
136.5 in.
(3.5 m)
1450XH
109 in.
(2.8 m)
1675XH
109 in.
(2.8 m)
1825XH
109 in.
(2.8 m)
1450XH
458.1 in.
(11.6 m)
1675XH
458.1 in.
(11.6 m)
1825XH
458.1 in.
(11.6 m)
1450XH
250 HP
1675XH
250 HP
1825XH
250 HP
1450XH
700 – 1000 RPM
1675XH
700 – 1000 RPM
1825XH
700 – 1000 RPM
Applications
Patz Vertical Mixers are used for endless applications in agricultural and industrial setting. Common uses include, but are not limited to:
- Composting
- Recycling
- Municipal Waste
- Livestock & Animal Feed
- Bale Processing
- Offal & By-products
- Mortality / Rendering Poultry & Swine (Disease Mitigation)
- Plastics
Standard Features & Options
DRIVE PACKAGES
Choice of: 2-Speed Stop-and-Shift or T3 Autoshift.
VORTEX® SCREW
Vortex® Screw mixes quickly without compromising feed quality. Constructed of welded steel with 5/8″ cupped fliting or available in XH with 3/4″ cupped flighting. Multi-angle design option. Pre-drilled to accept knives.
VERTICAL MIXER KNIVES
KNIFE OPTIONS:
Patz vertical screw knife positions are laser cut, ensuring optimal knife placement for fiber processing and torque distribution. Select from 10”, 12”, and 21 ½” serrated knives available in tungsten/carbide coating or AR400 steel to optimize particle length.
Add Patz aggressive RAPTOR® knives for bale processing with patented forward-facing design to keep long hay in the mix.
XH (EXTRA HEAVY) UNITS
XH (Extra Heavy) units feature a welded steel tub with 3/8″ thick walls and a 3/4″ reinforced bottom.
SIDE KIT
Metal extension to increase basic unit mixing capacity. Add overall height 9-1/4″ or 16″.
DISCHARGE CONVEYOR
Discharge conveyor option for front door or side discharge openings. Choice of fixed or sliding flat conveyors with right-hand, left-hand, or reversible discharge.
OPTIONAL TUB MOUNTED MAGNET (OPTIONAL)
Patz patented tub-mount magnet is strong enough to pull tramp metal from the ration while mixing. Encased in stainless steel and tub wall mounted on an easy access hinged assembly for safe, routine removal of errand, ferrous metal.
